Details:
2022 built 24m self-elevating multi-purpose jack up barge for sale.
Offering clear and honest pricing - please advise named buyer.
CCS IACS class, shallow water operating depth to 15m, high deck load capacity, four-leg jack up system, crane fitted, and onboard generator sets.
Vessel Overview

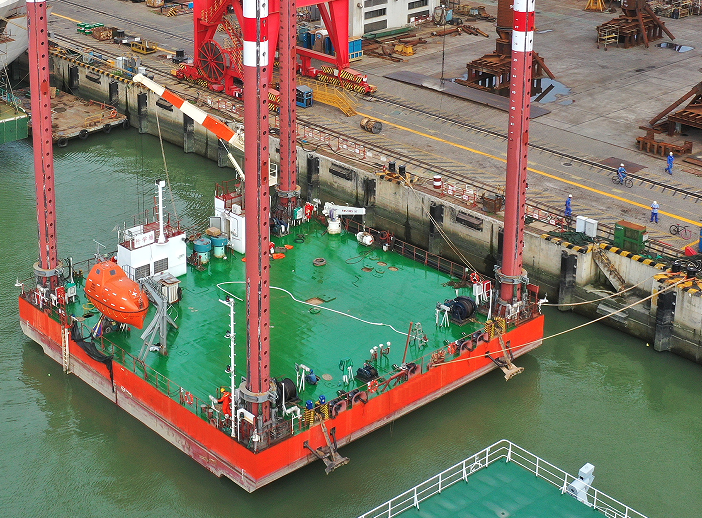

This self-elevating multi-purpose jack up barge was built in May 2022 in China and is classed by CCS, an IACS member. The barge is designed for offshore construction support, maintenance, installation, and inspection work in shallow water environments.
Dimensions and Operating Limits
The barge has a length overall of 24.0 meters and a breadth of 24.0 meters. It is designed to operate in seawater depths of up to 15.0 meters. The main deck variable load capability is rated at 100 metric tons, making the unit suitable for modular equipment, tools, and light construction loads.
Jack Up System
The jack up system consists of legs with a diameter of approximately 1.2 meters and a leg length of approximately 50 meters. The rated lifting capacity is 130 tons per single pile, with a maximum load capability of up to 260 tons per single pile, providing a stable working platform once elevated.
Power Generation
Electrical power is supplied by two main diesel generator sets rated at 90 kW each. An additional port use generator rated at 15.9 kW is fitted for harbor and auxiliary operations.
Deck Equipment
The barge is fitted with one deck crane rated at 5 tons, suitable for handling equipment, tools, and general lifting requirements during operations.
Key Applications
The unit is suitable for offshore wind support, marine construction, inspection and maintenance work, subsea preparation, and nearshore installation projects requiring a stable elevated platform.
Type of barge: Self-elevating Jackup barge
Built: 2022, may. China
Class: CCS (international, IACS)
Length overall: 24.0 m
Breadth: 24.0m
Operating sea water depth: 15.0m
Main deck load(Variable load capability): 100mt
Jackup system:
Jackup-Leg diameter: 1.2 m
Jackup-Leg length: 50m
Rated lifting load: 130 tons per single pile
MAX load: 260 tons per single pile
D/g SYSTEM:
Main D/G engine: 2X 90KW
PORT USE D/G: 15.9kW
Crane : 1X5TContact the Broker
Disclaimer: ALL DETAILS BELIEVED TO BE CORRECT BUT WITHOUT GUARANTEE - VESSEL OFFERED, AS IS, WHERE IS, SUBJECT TO PRIOR SALE, PRICE CHANGE, OR WITHDRAWAL WITHOUT NOTICE |
