Details:
40m landing craft newbuilding 2026 BKI class twin Weichai 514 kW 230 GT.

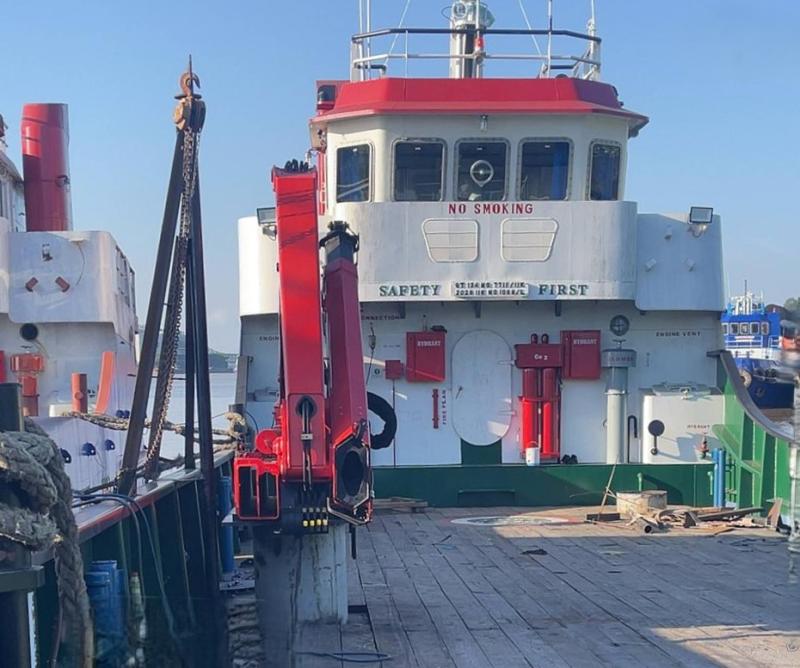

Optional 20T crane (extra cost)
General
Type Landing Craft
Year Built 2026
Class BKI or IACS IRS
Delivery 4 months after contract
Main Particulars
Length Overall 40.00 m
Length Between Perpendiculars 37.50 m
Beam 8.00 m
Depth 2.70 m
Draft 2.10 m
Gross Tonnage 230
Net Tonnage 69
Machinery
Main Engines 2 x Weichai Marine Diesel
Power 257 kW each at 1950 RPM (total 689 HP)
Power Generation
Generators Yanmar 4TNV98 GGE
Output approx 33 kVA
Gearboxes
2 x Hangzhou 135A
Ratio 5:1
Performance
Speed 8 to 9 knots
Capacities
Fuel Oil Tank 20618 liters
Daily Fuel Tank 891 liters
Fresh Water Tank 15291 liters
Navigation
Communication Navigation and Safety Equipment as per SOLAS
Deck Equipment
Optional Knuckle Boom Crane up to 20T lifting capacity
Commercial
Price USD 855000 excluding crane
Notes
Newbuilding landing craft with option to install 20T knuckle crane suitable for cargo transport and project support operations
Similar crane installations completed on comparable 34m landing craft units for export buyersContact the Broker
Disclaimer: ALL DETAILS BELIEVED TO BE CORRECT BUT WITHOUT GUARANTEE - VESSEL OFFERED, AS IS, WHERE IS, SUBJECT TO PRIOR SALE, PRICE CHANGE, OR WITHDRAWAL WITHOUT NOTICE |
