Details:

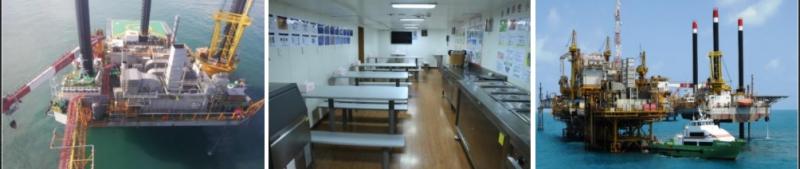

45m x 42m Self Elevating Jack Up Accommodation Rig - Depth to 35m
180t crane
deck are 800 swm
oper. depth 35m
70 men accommodation
helideck
Self elevating multifunctional platform
Business type:Life support, drilling and completion support,
increase production support, etc
Function introduction:Operating water depth 35 meters?Deck area 800m2 ?
Residential capacity 70 people?180 ton crane?Able to self navigate over
short distances
self-elevating jack-up accommodation rig designed to operate in water depths ranging from 5 meters to 35 meters. ? Design: LEVINGSTON
? Construction yard: CHINA MERCHANT HEAVY INDUSTRY CO. LTD. ? Year of construction: 2009
Main Dimensions ? Total length (helideck included): 59.1m
? Hull length: 45.4m
? Hull width: 42.6m
? Hull depth: 6.2m
? Leg length: 80.8m
? Spudcan dimension: 12 x 12m
? Main deck load: 4.8T/ m2 ? Headway (self- propulsion): 6 knots
Capacity
? Variable load (jacked up condition): 800T
? Fuel/diesel: 397.46m3 ? Portable water: 316.92 m3 ? Mud pits: 192.69 m3 ? Usable deck area: 800 m2 Operation Accommodation
? Residential capacity 70 people; ? Various kinds of offshore operation support service i.e. mud circulation support, equipment yard support, electricity power
export supply, lifting operation supply, Increase production support,etc. ? Accommodation equipments include modern galley and mess room for 45 persons; ? Living quarters include 2 shower rooms and 1 laundry room; ? 2 offices and 1 conference room; ? Multi-purpose recreation and reading room, including ping-pong room/reading room; ? Infirmary room with easy access to helideck.
Helideck
? Suitable for SIKORSKY S-76 helicopter , 5.3 T max load.
Crane
? Port side crane: diesel engine and hydraulic system, max working load: 180 T, working radius: 9~42 m
? Starboard side crane: electric and end hydraulic system, max working load: 35 T, working radius: 5~34 m
Main equipments ? Main generators: 4 x CATERPILLAR 3512B. 1200KW each, 600V 50HZ
? Emergency generator: 1 x CATERPILLAR 3412C. 385KW, 400V 50HZ
? Main thruster: 3 x 1200HP Z-type thruster ? Bow thruster: 1 x 600HP variable frequency thruster ? Seaater desalination equipment: 1 x water making capacity 30m3maker ? Steam boiler: 2 x steam boiler evaporation capacity 1500kg/h
? Mud pump: 2 x F-1000 mud pump
Survival equipments ? Life boat: 2 x life boats, capacity for 76 persons each (1 life
