ID: 19546
REF:
h1in | Year:
2026 | Location:
Asia |
Price:
$1,100,000 |
Length:
48m | DWT:
450 | BP:
1000 | Class:
BKI / IRS (IACS) |
Details:

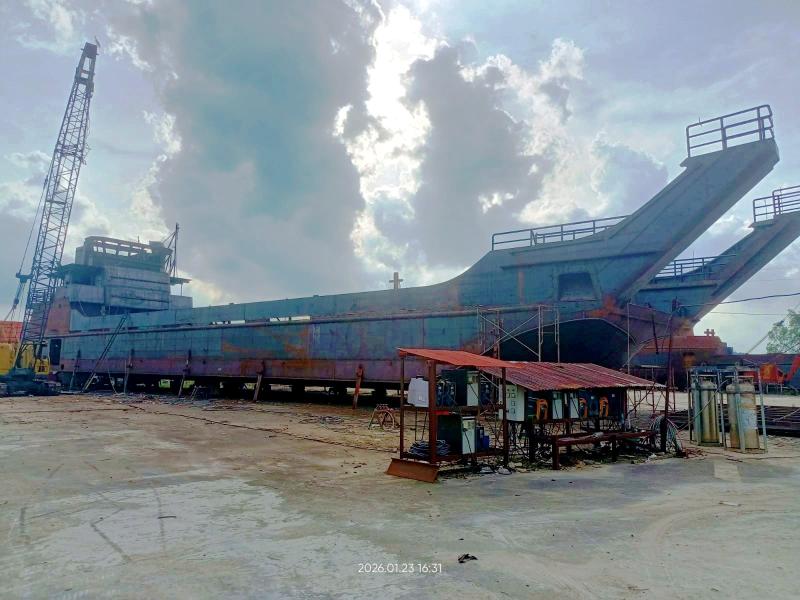

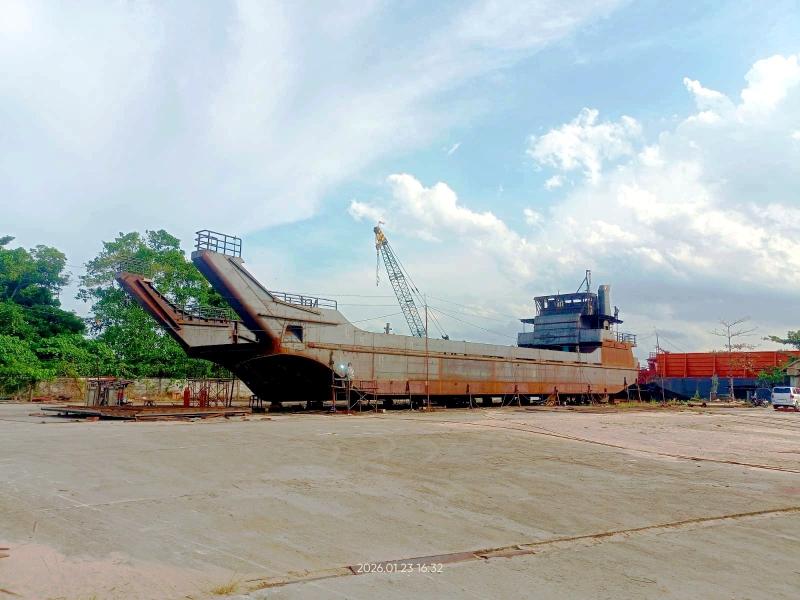

Newbuilding 48m steel landing craft for sale.
48.00m x 09.00m, year built 2026, delivery early May 2026 with class BKI/ IRS (IACS) price ex shipyard Us$ 1,100.000.-
BKI and IRS IACS class, 450 DWT, twin Yanmar main engines 1000 HP total, high deck load capacity, large clear cargo deck, and crane fitted.
Vessel Overview
This steel landing craft is a newbuilding scheduled for delivery in 2026. The vessel is classed by BKI and IRS, both IACS members, and is designed for coastal and regional cargo transport, vehicle carriage, and project cargo operations.
Dimensions and Capacities
The vessel has a length overall of 48.00 meters with a breadth of 9.00 meters and a design draft of approximately 2.75 meters. Clear deck space is approximately 310 square meters, consisting of a main deck area of about 33.3 meters by 9.0 meters plus an additional deck area of approximately 2.7 meters by 7.0 meters. Maximum deck loading is rated at 5 metric tons per square meter. Total deck cargo capacity is approximately 250 metric tons. Deadweight capacity is approximately 450 tons. Gross tonnage is about 348 and net tonnage about 104.
Propulsion and Machinery
The vessel is powered by two Yanmar marine diesel main engines, model 6HYM-WET, each rated at 500 PS, delivering a total installed power of approximately 1000 HP at 1950 RPM. Propulsion is via twin fixed pitch propellers through two Hangzhou D300 gearboxes with a reduction ratio of 1 to 5. Electrical power is provided by two Yanmar marine diesel generator sets rated at 85 kVA each.
Tank Capacities
Fuel oil tank capacity is approximately 50,000 liters. Fresh water tank capacity is approximately 50,000 liters.
Deck Equipment
The vessel is fitted with a deck crane rated at 5 tons safe working load, Sany Palfinger make, with a working radius of 5 meters.
Navigation and Communications
Navigation and radio equipment includes a Furuno 1715 radar, Koden CVS-126 echo sounder, Furuno NX300 Navtex, Furuno GPS-39 satellite GPS, Icom 323 VHF radio, Icom 710 SSB radio, Samyung SART-9 search and rescue transponder, Samyung EPIRB, and AIS Class A.
Accommodation
The vessel is arranged for a complement of 10 crew, consisting of two single cabins and four double cabins.
Hull Scantlings
Keel thickness is 12 mm. Bottom plating thickness is 10 mm. Hull plating thickness is 10 mm. Deck plating thickness is 8 mm. Frame thickness is 8 mm. Angle bars are 8 x 8 mm with a length of 6 meters. Strip thickness is 8 mm. Wheelhouse plating thickness is 6 mm.
All details are given in good faith and for information only, without guarantee or prejudice.Contact the Broker
