Details:

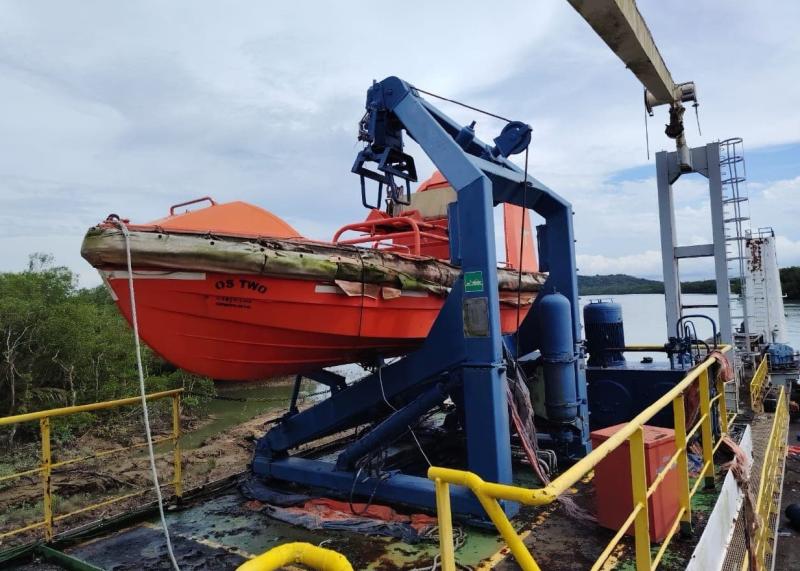

Complete enclosed rescue boat with hydraulic launching davit removed from offshore installation and offered strictly as-is, where-is. Package includes FRP enclosed rescue craft, heavy-duty steel davit, hydraulic power unit, wire hoist, cradle, and mounting frame.
Suitable for offshore platforms, OSVs, FPSOs, drillships, and marine safety training facilities. The system will require full inspection, recommissioning, load testing, and re-certification prior to any return to service.
Ideal project unit for operators, shipyards, or training facilities with in-house marine engineering capability.
Rescue Boat - Technical Specifications
(From manufacturer documentation)
Type: Enclosed Fast Rescue Boat
Length Overall: 6.70 m (incl. fender & water jet)
Hull Length: 6.50 m (incl. hull & fender)
Beam (Overall): 2.32 m
Beam (Moulded): 2.15 m
Depth: 1.10 m
Capacity: 15 persons
Boat Weight (No Load): 1,700 kg
Persons Weight (15P): 1,125 kg
Total Loaded Weight: 2,825 kg
Fuel Capacity: 160 liters
Speed: Up to 30 knots (with 3 persons)
Main Engine: 212 HP (BUKH / STEYR SOLAS 236 configuration)
Construction & Safety Features
FRP hull molded from fire-retardant polyester resin
Hull/liner voids filled with polyurethane buoyancy foam for positive flotation if holed
Self-bailing deck
Lifelines and handgrips around gunwale
Approved single-point lifting hook with painter release system
Davit & Launching System - Technical Specifications
Manufacturer: Jiangyin Xinjiang FRP Co., Ltd. (China)
Model Type: JIAOYAN / JYH Launching Appliance for Rescue Boat
Function: Hydraulic launch and recovery davit for fast rescue boats
Hoisting Working Load: 30 kN
Lowering Working Load: 30 kN
Hoisting Speed: > 48 m/min
Lowering Speed: 48-60 m/min
Hydraulic Power Unit Motor: 45 kW
Relief Valve Pressure: 19 MPa
Operating Mode
Electric motor-driven hydraulic pump for launch and recovery
Emergency manual lowering via accumulator and gravity in the event of power failure
Condition & Compliance Status (Critical Disclosure)
This system is offered strictly as-is, where-is.
Known Status:
Removed from offshore service
Stored outdoors
No current SOLAS certificate
No valid Class approvals
No current load testing
No commissioning or operational guarantee
Buyer Responsibility:
Full mechanical and hydraulic inspection
Replacement of wire falls, hooks, and time-expired components
Engine inspection and recommissioning
Structural inspection of davit
Electrical and control system inspection
Load testing
SOLAS / Flag State / Class re-certification
?? This equipment is not ready for operational use. Buyer assumes all responsibility for regulatory compliance.
General Particulars
Type: Enclosed Rescue Boat (Davit-Launched)
Builder (Davit): Jiangyin Xinjiang FRP Co., Ltd.
Davit Type: Hydraulic slewing rescue boat davit (pivoting arm type)
Construction:
Rescue Boat: FRP enclosed capsule
Davit: Heavy-duty marine steel structure
Hydraulic power pack with electric motor
Compliance (Original Build):
Built to SOLAS / LSA Code standards (all certifications now lapsed)
Launch & Recovery:
Powered hydraulic slewing davit
Wire rope hoist
Emergency recovery capability
Included in Sale:
Enclosed rescue boat
Hydraulic davit system
Hydraulic power unit
Launching cradle
Mounting frame
Typical Applications
Offshore platforms
FPSOs
Drillships
Offshore Support Vessels (OSVs)
Emergency response vessels
Shore-based marine safety training facilities
Price & Terms
Price: Offers Invited
Location: Southeast Asia
Delivery: Buyer to arrange loading, transport, and export as required
Terms: As-is, where-is. No commissioning, certification, or compliance implied.
Broker's Note
Complete matched rescue boat and davit systems are increasingly difficult to source on the secondary market. This package represents a low capital entry opportunity for buyers prepared to refurbish and re-certify for offshore service or training use.Contact the Broker
Disclaimer: ALL DETAILS BELIEVED TO BE CORRECT BUT WITHOUT GUARANTEE - VESSEL OFFERED, AS IS, WHERE IS, SUBJECT TO PRIOR SALE, PRICE CHANGE, OR WITHDRAWAL WITHOUT NOTICE |
