Details:

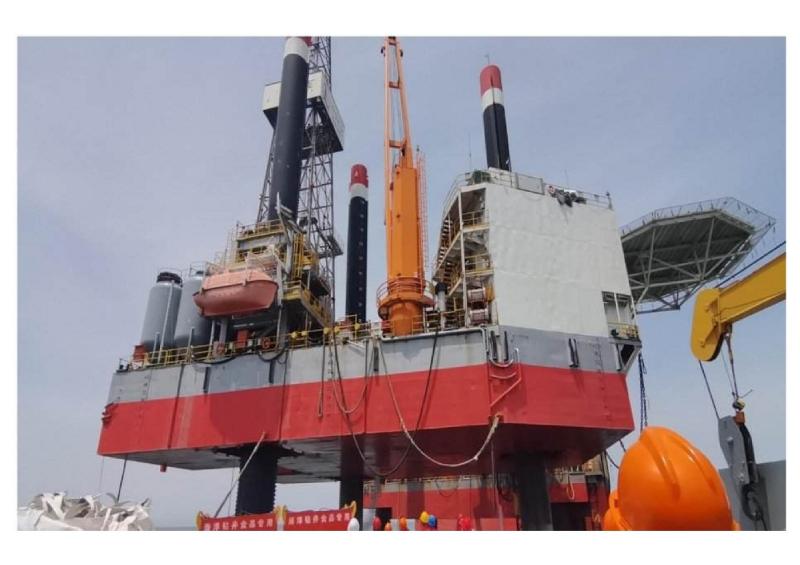

60m three leg self elevating jack up drilling rig originally built in France extensively upgraded with 5000m drilling capability
General
Type Self Elevating Jack Up Drilling Rig
Configuration Three Leg Mobile Drilling Platform
Built 1980
Builder France
Imported to China 1997
Refitted Yantai Shipyard China
Major Upgrades 2009
Major Upgrades 2012
Major Upgrades 2015
Major Upgrades 2022
Major Upgrades July 2024
Status Idle and maintained
Location China
Main Particulars
Length Overall 59.95 m
Overall Width 37.70 m
Moulded Breadth 32.30 m
Moulded Depth 5.20 m
Jack Up System
Legs 3
Leg Diameter 3.00 m
Leg Length 70.00 m
Maximum Operating Water Depth 30.00 m
Operating Criteria
Maximum Drilling Wave Height 5.30 m
Maximum Survival Wave Height 6.30 m
Maximum Operating Wind Speed 36.0 m/s
Maximum Survival Wind Speed 51.5 m/s
Normal Lifting Load 3150 t
Normal Support Load 4500 t
Drilling Equipment
Drilling Winch JC-50D
Maximum Drilling Depth 5000 m
Drilling Winch Input Power 1100 kW
Mud Pumps 3NB-1600F
Mud Pump Rated Power 1193 kW
Maximum Mud Pump Pressure 35 MPa
Top Drive DQ70III-A
Top Drive Rated Load 4500 kN
Deck Equipment
Crane TC-450
Maximum Hook Load 4500 kN
Power Generation
Main Generators 4 x CAT 3512BSR4B
Generator Output 4 x 1200 kW
Tank Capacities
Drilling Water Tanks
Fresh Water Tanks
Diesel Oil Tanks
Lubricating Oil Tanks
Mud Sump
Barite Storage
Bagged Product Storage
General Service Storage
Accommodation
Accommodation Block
Power Room
Emergency Generator Room
Mud Pump Room
Ballast Tanks
Fuel Tank
Fresh Water Tank
Certification
Nationality Certificate
Ownership Certificate
Safety Certificate
Qualification Certificate
Load Line Certificate
Oil Pollution Prevention Certificate
Sewage Pollution Prevention Certificate
Air Pollution Prevention Certificate
Several certificates reported valid through 2027 and 2028
Condition
Platform currently laid up in maintained condition.
Reported capable of returning to drilling operations following restoration, recommissioning and outfitting.
Applications
Offshore Oil and Gas Drilling
Development Drilling
Workover Operations
Shallow Water Exploration
Offshore Field Development
Notes
Originally constructed in France and extensively modernized during its operating life with major equipment upgrades completed through July 2024.
Specifications reported subject to verification upon inspection and review of class, statutory certificates and technical documentation.Contact the Broker
